Sonar: proof of concept

In the previous Dev Diary I detailed why I want to make a submarine game with a heavy focus on sonar. Now it’s time to create the sonar screen for the game. Let’s start with some visual requirements that I have for the sonar:

• Despite being a 2D sonar, the game world should be 3D. Thus the sonar must support all three dimensions (i.e. 2D + depth)
• Terrain must be visualised
• It must be possible to distinguish terrain that’s at a deeper or lower depth than the player
• Objects (e.g. other submarines) must be visualised, where each object must be able to define a properties that lead to different visualisations on the sonar (e.g. size, shape)
• At best the sonar at a whole should look mysterious

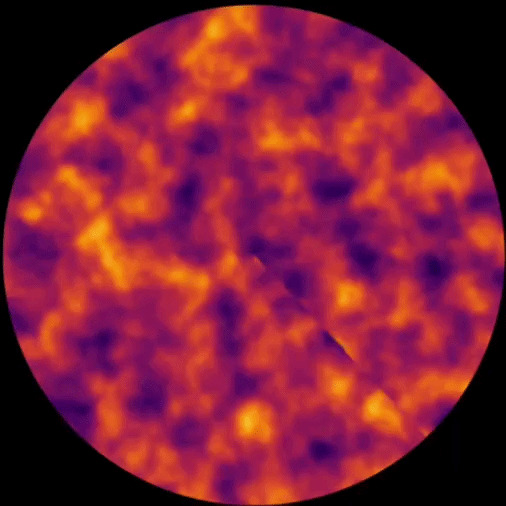

As a very first prototype I didn’t even use Unity (my game engine of choice) but wrote a python script to see whether the sonar effect in mind would even work, before beginning to write the actual sonar in a compute shader. One coding session later I had produced this:

This prototype works by moving a 2D slice through 3D simplex noise to get a continuous change in the displayed 2D noise field. By only updating the pixels within a rotating wedge each frame, I get the sonar-like effect.

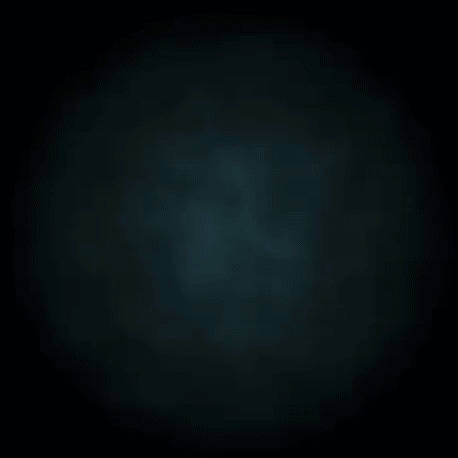

Changing the color gradient to something more ocean-like and adding a fade effect towards the edge of the sonar already made it have some of the desired mysterious feeling:

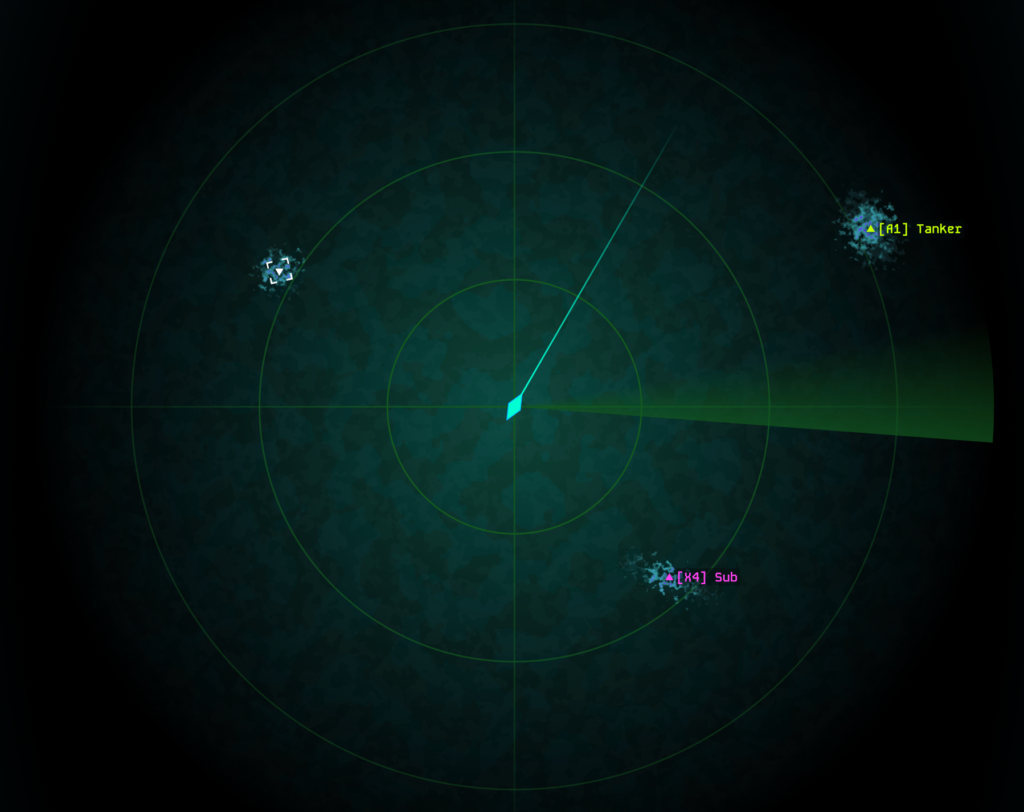

With this proof of concept done I felt confident that the whole sonar game idea was going to work. The next step was now to write the sonar as a compute shader in Unity. However, one thing that has often accelerated my development progress, is to first create a design template before doing anything graphical in Unity. Thus I took some time to make an actual design in Figma for how I roughly wanted the sonar to look. Figma’s noise and texture effect really saved me here and I managed to create something that I was actually quite happy with.
